Compared to ”KATANA™ Zirconia” HTML, ”KATANA™ Zirconia” HTML PLUS has higher translucency, and can optimize colors to harmonize better with the oral cavity. “KATANA™ Zirconia” HTML PLUS is compatible with the 54-minute sintering program and can be sintered according to same sintering schedule as UTML, STML and YML.

Comparison of color: “KATANA™ Zirconia” HTML PLUS A3.5 vs. previous HTML A3.5. Color of HTML PLUS is brighter, deeper and more vivid even on the gum area.

”KATANA™ Zirconia” HTML PLUS is made from a completely new raw material developed in-house, allowing us to improve its translucency.

”KATANA™ Zirconia” HTML PLUS has the same mechanical strength as HTML, while its translucency has been improved compared to HTML. Please refer to the inserted chart below.

“KATANA™ Zirconia” HTML PLUS, YML, UTML, and STML can be sintered using 54-minute, 90-minute, or standard sintering schedule. UTML and STML can be sintered according to either the new or conventional sintering schedule, but HTML PLUS cannot be sintered according to the conventional HTML sintering schedule.

HTML PLUS and HTML are made from different raw materials. The sintering schedule has been adapted to sinter the raw materials of HTML PLUS appropriately.

This is not recommended as you will not be able to achieve your desired level of translucency or mechanical strength.

The measurement conditions differ depending on the manufacturer. Some manufacturers do not disclose this information. We adopt the All Light Transmittance Testing Method (Illuminant: D65, Thickness of sample: 1.0mm) of Tosoh, ltd., which other major manufacturers also adopt.

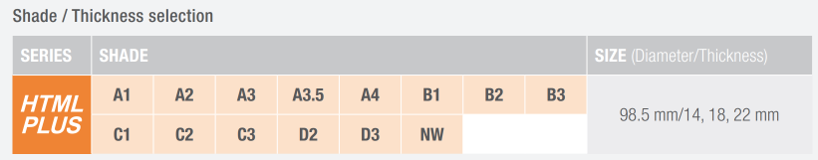

“KATANA™ Zirconia” HTML PLUS is available in a selection of 14 shades. Please refer to the following table overview for more information about shade and disc thickness.

No, this is not possible. 54 or 90-minute sintering is only possible for up to a three-unit bridge restoration.

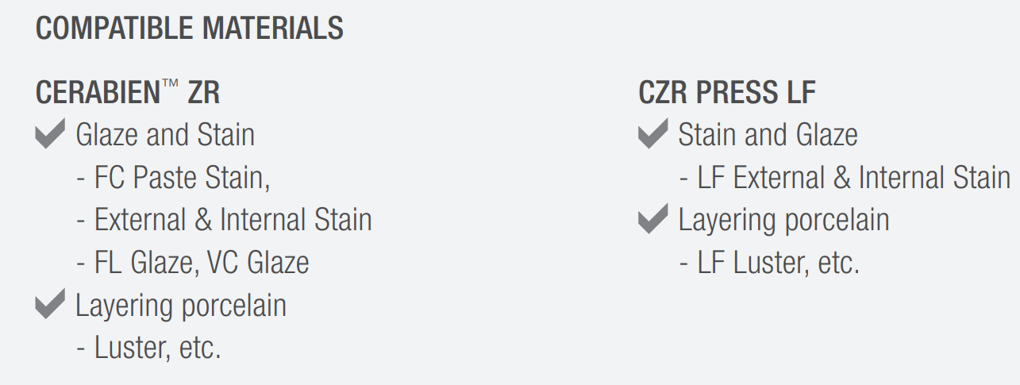

“KATANA™ Zirconia” HTML PLUS can be finished by glazing, staining or porcelain application.

Of course, this is possible. For this purpose, the desired high-polished finishing can easily be achieved with ”PEARL SURFACE™ Z” (polishing paste). Please note that the shade of “KATANA™ Zirconia” HTML PLUS should be pre-set for glazing, due to the fact that zirconia has a tendency to become darker during the polishing process. Therefore, select in advance one shade lighter than the target shade

This is not recommended as you will not be able to achieve your desired level of translucency or color development.

”KATANA™ Zirconia” PLUS has brighter, deeper and more vivid colors allowing it to harmonize better with the oral cavity, as well as the gum color. The translucency has also been improved made possible by our newly developed in-house raw materials.

Recommended frame design and points to be kept in mind for ”KATANA™ Zirconia” HTML PLUS are the same as those of HTML. Only the sintering schedule is different. Please use the new sintering schedule for” KATANA™ Zirconia” HTML PLUS

It is generally not recommended to wet-mill this product, because the desired aesthetic effect may not be achieved due to the possibility of contamination, which can reduce translucency.

If a restoration is contaminated before sintering, it will cause white spots to appear on the restoration during the sintering process. Causes for this are, for example, oily fingers, excessive purging with high air pressure, residuals of silicon point substance that were applied to the pre-sintered zirconia during adjustment procedures, the use of scanning spray, or the insufficient removal of zirconia powder that were created during the milling process/removal of sprue. Please take care not to contaminate the restoration.

The sintering parameters differ depending on manufacturers. “KATANA™ Zirconia” UTML, STML, YML and HTML PLUS (excluding HT and LT) can be sintered according to same sintering schedule. The maximum sintering temperature for the 54-minute program is 1600°C (2912°F), for the 90-minute program 1560°C (2840°F) and for the 7-hour program 1550°C (2822°F). Please refer to the sintering schedule when sintering restorations.

Any sintering furnace, regardless of the manufacturer, is capable of setting the “KATANA™ Zirconia” sintering program, on condition that its technical specifications can be used. If the “KATANA™ Zirconia” sintering program is not programmable in your sintering furnace, it is unfortunately not possible to set the furnace according to this schedule.

Yes, this is possible using several options in your CAD/CAM software. These options allow the designer to change the restoration position within the disc profile to achieve the best gradation map for the restoration.

The side on which the “occlusal surface” sketch has been imprinted represents the upper layer (the enamel layer).

The shade of “KATANA™ Zirconia” multi-layered series should be pre-set for glazing.

“KATANA™ Zirconia” is characterized by the unique in-house production of zirconia raw materials: By using materials that Kuraray Noritake Dental Inc. has developed by themselves specifically for “KATANA™ Zirconia”, completely different from those of other competitors, it is possible to realize high-speed sintering without compromising the aesthetic and mechanical properties.
