Detailed Specs & Benefits of KATANA™ Zirconia ONE For IMPLANT, For CEREC
KATANA™ Zirconia ONE For IMPLANT, For CEREC
A Smarter Solution for Chairside Implant Restorations KATANA™ Zirconia ONE for IMPLANT, For CEREC is engineered to simplify the implant workflow without compromising esthetics or performance. This innovative multi-layered zirconia block allows clinicians to fabricate both hybrid abutments and hybrid abutment crowns from a single material — saving time, reducing inventory, and improving efficiency. Designed for natural beauty and lasting durability, KATANA™ Zirconia ONE for IMPLANT, For CEREC delivers 932 MPa flexural strength, seamless shade gradation, and reliable precision fit for confident results in both the anterior and posterior. Ideal for chairside implant restorations that demand beauty, accuracy, and speed, KATANA™ Zirconia ONE for Implant elevates the digital implant workflow — from design to delivery. One Block. Total Confidence.
Features & Benefits
Two Restorations in One Block
Fabricate either a hybrid abutment crown or a hybrid abutment from a single block—case-dependent flexibility.
Natural Shade Gradation
Four-layer structure (Enamel → Transition Layers → Dentin) mimics real tooth color and translucency.
932 MPa Flexural Strength
Strong enough for implant restorations while preserving natural esthetics—ISO 6872 tested.
Designed for CEREC Systems
Fully compatible with CEREC Primescan, Primemill, and SpeedFire systems for seamless chairside use.
Anterior & Posterior Applications
Can be hand polished for posterior restorations or glazed/stained for highly esthetic anterior restorations.
10 VITA-Matched Shades
Available in A1–A3.5, B1–B2, C1–C2, D2, and NW—providing wide coverage for shade-matching needs.
Two Restorations in One Block
Fabricate either a hybrid abutment crown or a hybrid abutment from a single block—case-dependent flexibility.
Natural Shade Gradation
Four-layer structure (Enamel → Transition Layers → Dentin) mimics real tooth color and translucency.
932 MPa Flexural Strength
Strong enough for implant restorations while preserving natural esthetics—ISO 6872 tested.
Designed for CEREC Systems
Fully compatible with CEREC Primescan, Primemill, and SpeedFire systems for seamless chairside use.
Anterior & Posterior Applications
Can be hand polished for posterior restorations or glazed/stained for highly esthetic anterior restorations.
10 VITA-Matched Shades
Available in A1–A3.5, B1–B2, C1–C2, D2, and NW—providing wide coverage for shade-matching needs.
Images

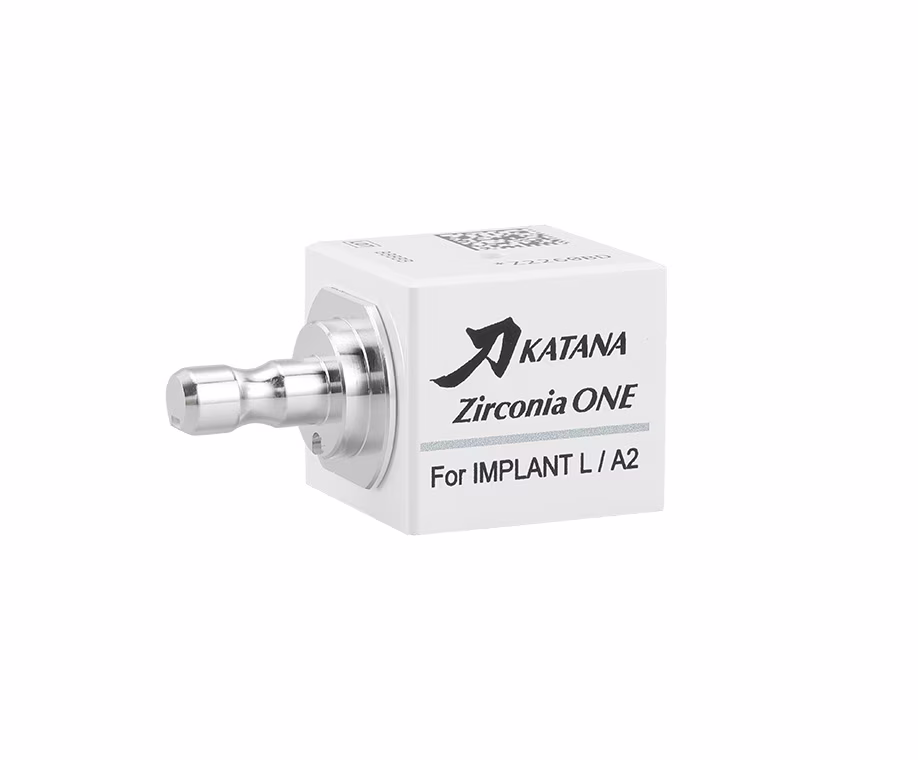

KATANA™ Zirconia ONE for IMPLANT, For CEREC

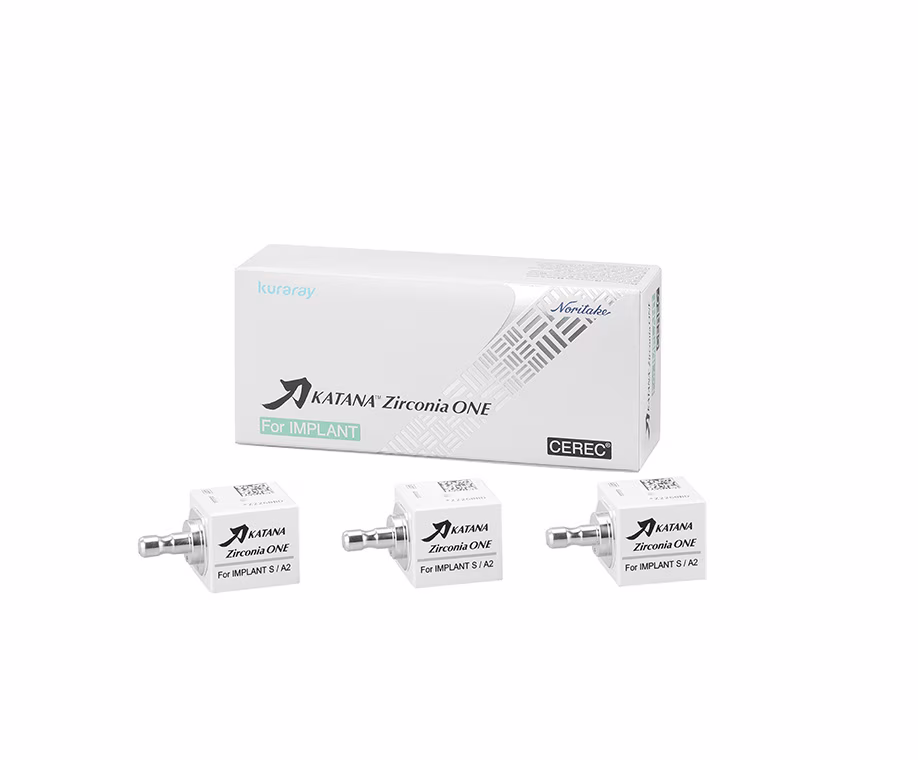

KATANA™ Zirconia ONE for IMPLANT, For CEREC box

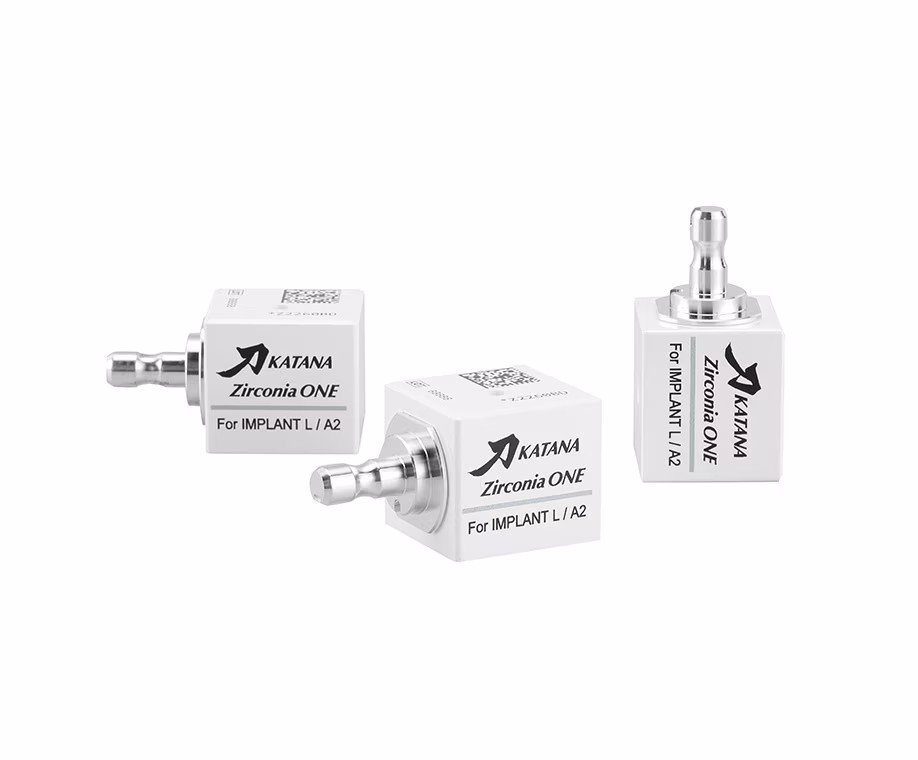

KATANA™ Zirconia ONE for IMPLANT, For CEREC
KATANA™ Zirconia ONE for IMPLANT, For CEREC
Video
Dr. Dhaval Patel discusses KATANA™ ONE Implant Block with Dr. Penelope Chang
KATANA™ ONE Block for Implant is available through Henry Schein, Patterson and Benco. Dr. Dhaval Pate interviews Dr. Penelope Chang on her experience with the new KATANA™ block as an early adopter.
Dr. Dhaval Patel discusses KATANA™ ONE Implant Block with Dr. Daniel Vazquez
KATANA™ ONE Block for Implant is available through Henry Schein, Patterson and Benco. Dr. Patel interviews Dr. Daniel Vazquez on his experience with the new KATANA™ block as an early adopter.
Dr. Dhaval Patel discusses KATANA™ ONE Implant Block with Dr. Dinesh Sinha
KATANA™ ONE Block for Implant is available through Henry Schein, Patterson and Benco. Dr. Patel interviews Dr. Dinesh Sinha, Senior Technical and Marketing Manager at Kuraray Noritake.
Dr. Dhaval Patel discusses KATANA™ ONE Implant Block with Dr. Jenny Apekian
KATANA™ ONE Block for Implant is available through Henry Schein, Patterson and Benco. Dr. Patel interviews Dr. Jenny Apekian on her experience with the new KATANA™ block as an early adopter.
Specs
Indications
Hybrid abutment crowns (screw-retained) and hybrid abutments (cement-retained crowns) for implant-supported restorations.
Multi-Layer Structure
Four-layer design: Enamel Layer → Transition Layer 1 → Transition Layer 2 → Dentin Layer—natural depth and color.
Sintering Time
~33 minutes in CEREC SpeedFire; requires no additional drying when used dry.
Available Shades
A1–A3.5
B1–B2
C1–C2
D2 (VITA Classical)
NW (Noritake White)
Flexural Strength
932 MPa (ISO 6872:2015, 3-point bend test); suitable for high-load posterior and implant zones.
Compatible Systems
CEREC Primescan, CEREC Primemill, SpeedFire furnace; supports dry and wet processing.
Cementation
Recommended with PANAVIA™ SA Cement Universal (White); supports AC technique bonding.
Block Size & Types
S-type and L-type blocks (same size, different access hole diameter)
24.6 × 23.6 × 22.1 mm (pre-sintered)
Promotions
Resources
Frequently Asked Questions
What are the main features of KATANA™ Zirconia ONE For IMPLANT?
KATANA™ Zirconia ONE is a pre-sintered zirconia block which is designed for CEREC systems.
KATANA™ Zirconia ONE For IMPLANT is designed for using as a mesostructure of an implant system, and has an access hole for connecting to the TiBase.
It can be fabricated as a hybrid abutment crown or a hybrid abutment.
Designed to match the shade guide¹, when used as a posterior restoration finished by hand polishing.
Main features of the product:
1) Two types of restoration options in ONE block - a hybrid abutment crown or a hybrid abutment
2) Flexural strength; 932 MPa²
3) Multi-Layer technology results in natural tooth-colored restorations
4) 10 shades available based on VITA classical A1-D4® shade guide
1. NW is based on NW0 of NORITAKE SHADE GUIDE, and others are based on VITA classical A1-D4® shade guide
2. According to ISO 6872:2015, Three-point flexural strength test Sample size 1.2 x 4 x14 mm, Span length 12 mm
Source: Kuraray Noritake Dental Inc.
How many layers does the product consist of?
The product consists of four different colored zirconia layers. They are arranged in the order of 35% (Body Layer), 15% (Transition Layer 1), 15% (Transition Layer 2), and 35% (Enamel Layer).
As for the direction of the layer, the mandrel's notched side is the body layer, while the opposite side acts as the enamel layer.
What are the product’s indications?
KATANA™ Zirconia ONE For IMPLANT is indicated for use in manufacturing individually designed restorations (mesostructures), which are cemented to TiBase after milling/grinding and sintering. Please also observe the instructions provided by the manufacturer of the TiBase or the implant system.
How many shades are there?
10 shades (NW, A1, A2, A3, A3.5, B1, B2, C1, C2, D2).
How thick does it have to be?
The angle of the axial surface should be within the range of 0 to 20 degrees.
When milling the block, keep the minimum wall thickness and necessary angle of the axial surface, referring to the illustration below.
Buy KATANA™ Zirconia ONE For IMPLANT, For CEREC Products
KATANA™ Zirconia ONE Implant L
Select shade:
$265.99

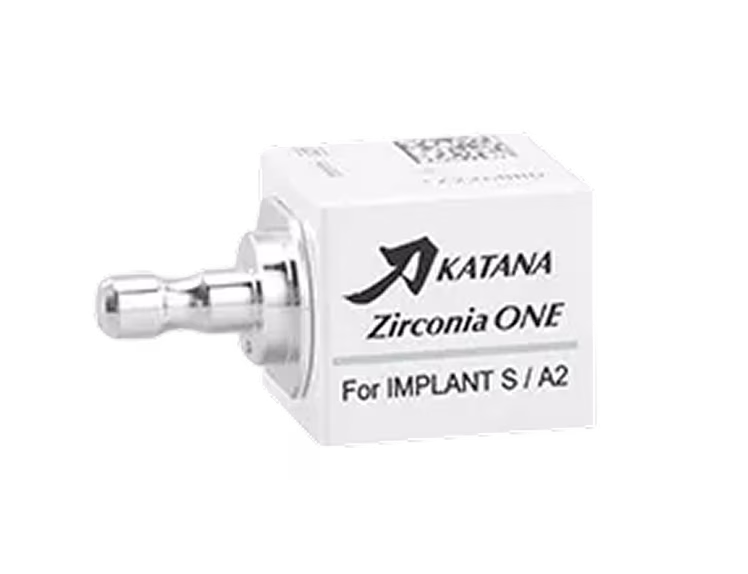

KATANA™ Zirconia ONE Implant S
