Detailed Specs & Benefits of KATANA™ Zirconia STML
KATANA™ Zirconia STML
KATANA™ Zirconia STML combines medium-to-high flexural strength (748 MPa) with a graduated translucency profile, delivering optimal esthetics in both anterior and posterior restorations.
Features & Benefits
Natural Multi-Layered Color Gradient
Four seamlessly integrated layers replicate the varying translucency and chroma of natural teeth, ensuring lifelike results without visible transition lines.
Versatile Indications
Designed for crowns, frameworks, and bridges up to three units in both anterior and posterior regions, while also suitable for veneers, inlays, and onlays.
Rapid Sintering Options
Choose from standard 7-hour, fast 90-minute, or ultra-fast 54-minute sintering for single-tooth and short-span restorations, enabling efficient turnaround for laboratories.
High Surface Quality & Milling Precision
Exceptional raw material quality and in-house production ensure outstanding edge stability, minimal chipping, and a smooth surface finish after milling.
Compatible with Advanced Finishing Techniques
Ideal for monolithic ultra-micro-layering with CERABIEN™ ZR FC Paste Stain or vestibular cutback micro-layering for enhanced customization.
Natural Multi-Layered Color Gradient
Four seamlessly integrated layers replicate the varying translucency and chroma of natural teeth, ensuring lifelike results without visible transition lines.
Versatile Indications
Designed for crowns, frameworks, and bridges up to three units in both anterior and posterior regions, while also suitable for veneers, inlays, and onlays.
Rapid Sintering Options
Choose from standard 7-hour, fast 90-minute, or ultra-fast 54-minute sintering for single-tooth and short-span restorations, enabling efficient turnaround for laboratories.
High Surface Quality & Milling Precision
Exceptional raw material quality and in-house production ensure outstanding edge stability, minimal chipping, and a smooth surface finish after milling.
Compatible with Advanced Finishing Techniques
Ideal for monolithic ultra-micro-layering with CERABIEN™ ZR FC Paste Stain or vestibular cutback micro-layering for enhanced customization.
Images

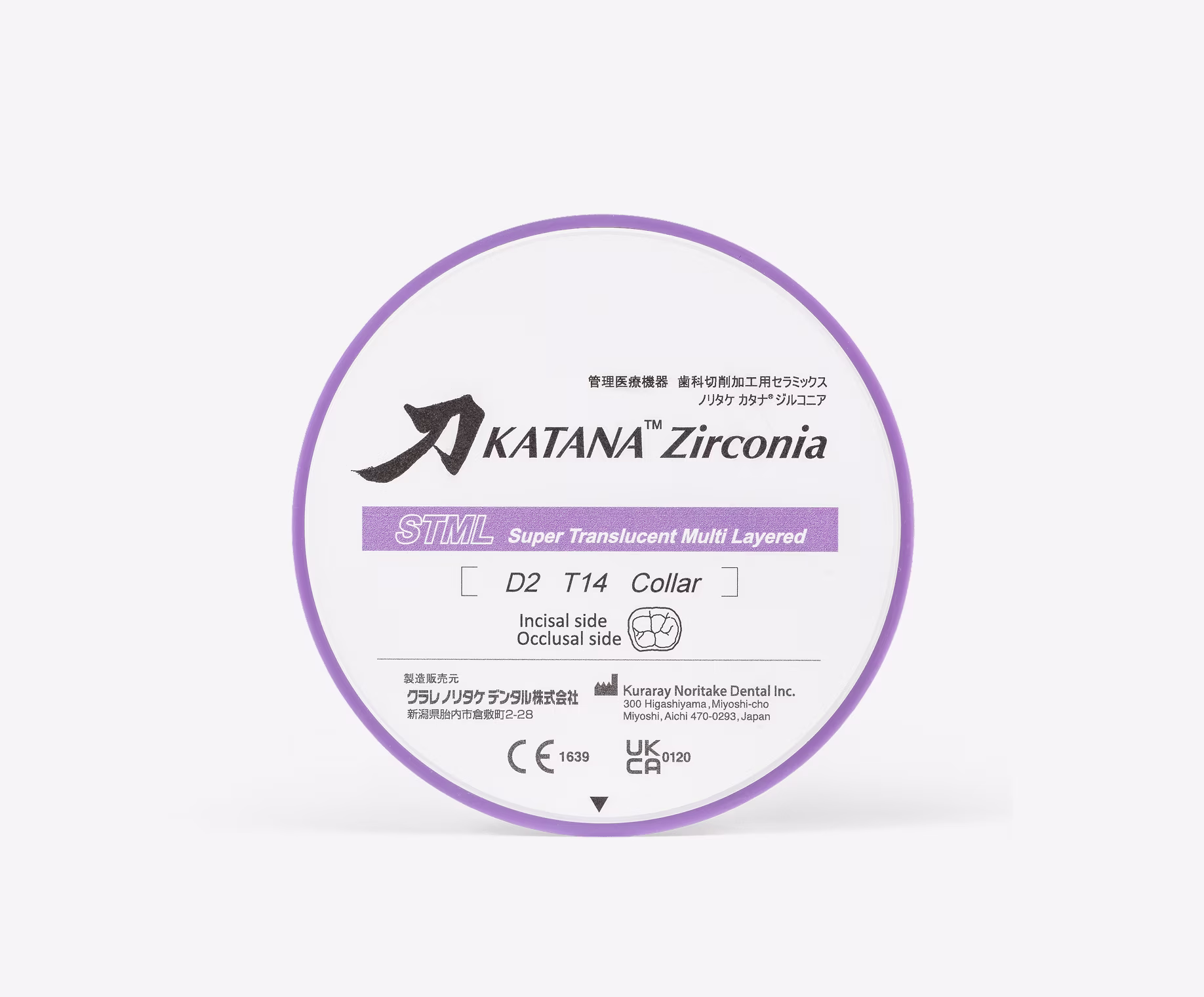

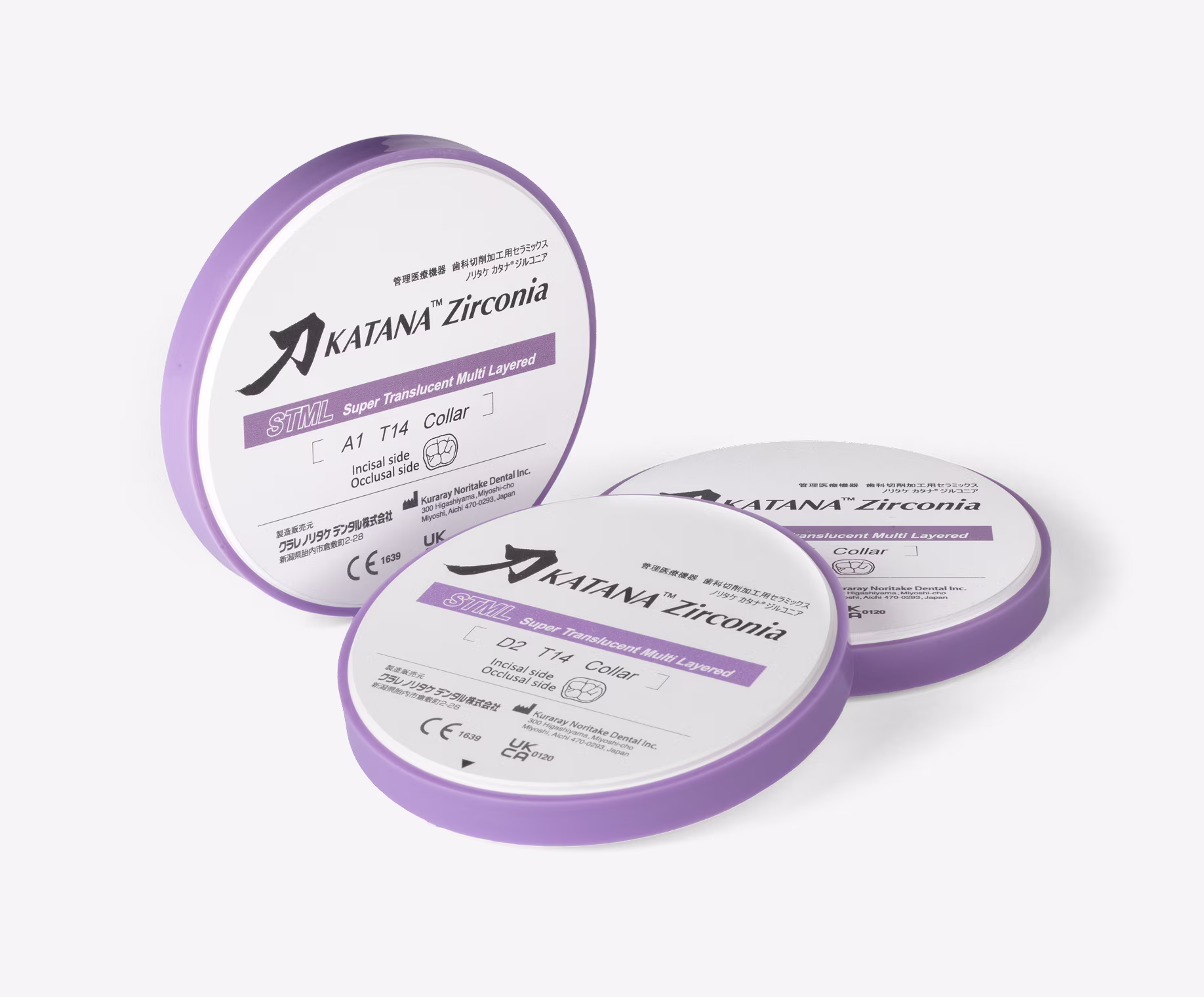

KATANA™ Zirconia STML

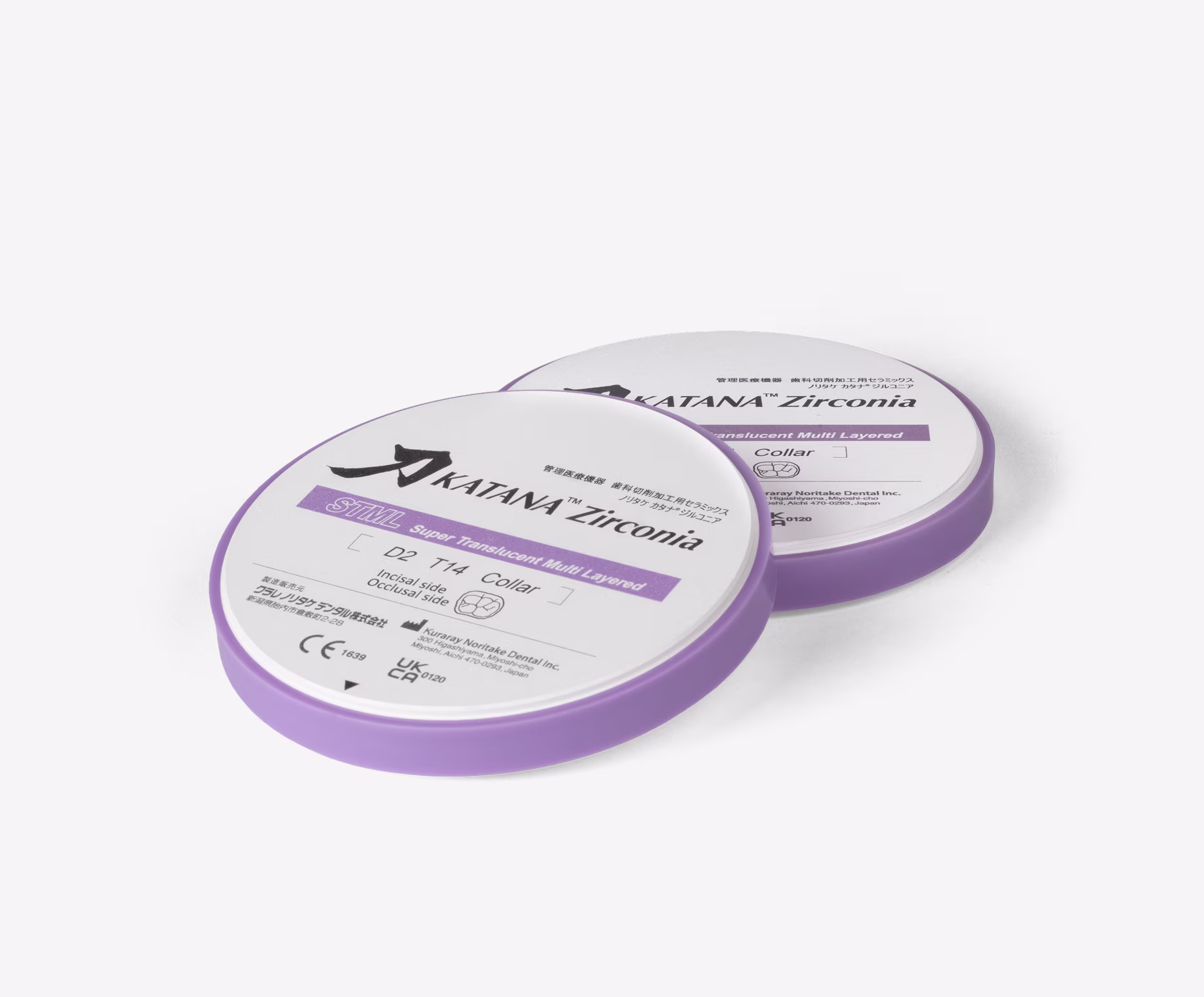

KATANA™ Zirconia STML package
KATANA™ Zirconia STML multi-layers
Specs
Flexural Strength
748 MPa for reliable performance across anterior and posterior applications.
Layer Structure
Four-layer composition—Enamel, Transition 1, Transition 2, and Body—mimicking natural tooth anatomy.
Connector Dimensions
Anterior 2–3 unit bridge: 7 mm² | Anterior >4 unit bridge: 9 mm² | Posterior bridge: 9 mm².
Sintering Options
7-hour standard cycle, 90-minute fast cycle, or 54-minute ultra-fast cycle for single/short-span restorations.
Available Sizes
98.5 mm diameter in 14 mm, 18 mm, and 22 mm thicknesses.
Translucency
49% light transmittance, with gradation from incisal to cervical areas for natural esthetics.
Minimum Thickness
Veneer: 0.4 mm | Anterior crown: 0.4 mm | Inlay/onlay: 0.5 mm | Posterior crown: 0.5 mm.
Indications
Anterior and posterior crowns, anterior/posterior 3-unit bridges, frameworks, veneers, inlays/onlays.
Shade Range
Available in standard shades A1–A4, B1–B4, C1–C4, D2–D4, NW, and enamel shades ENW, EA1–EA3.
Resources
Instructions:
Related Workflow Products
Low-fusing porcelain system for lifelike micro-layering on zirconia and lithium disilicate restorations.
