Detailed Specs & Benefits of KATANA™ Zirconia UTML
KATANA™ Zirconia UTML
With 51% light transmittance—matching lithium disilicate LT—KATANA™ Zirconia UTML allows natural tooth shades to shine through, creating lifelike anterior restorations, including veneers, without sacrificing strength.
Features & Benefits
Optimized for Anterior Restorations
Engineered with a predominantly cubic crystal structure, UTML is the expert choice for veneers, inlays/onlays, and anterior crowns, delivering exceptional optical properties and true-to-life results.
Multi-Layered Color Structure
Four seamlessly integrated layers replicate the natural color gradient of enamel and dentin, eliminating visible transition lines and enhancing esthetic outcomes.
Minimal Wall Thickness for Conservative Prep
Allows ultra-thin veneers at 0.4 mm and anterior crowns at 0.8 mm, enabling minimally invasive tooth preparations while maintaining structural integrity.
Fast Sintering Capability
Can be sintered in as little as 54 or 90 minutes for single-tooth restorations and small bridges, accelerating turnaround without compromising esthetics or strength.
Compatible with Advanced Finishing Techniques
Ideal for ultra-micro-layering with CERABIEN™ ZR FC Paste Stain or minimal vestibular cutback for enhanced surface characterization.
Optimized for Anterior Restorations
Engineered with a predominantly cubic crystal structure, UTML is the expert choice for veneers, inlays/onlays, and anterior crowns, delivering exceptional optical properties and true-to-life results.
Multi-Layered Color Structure
Four seamlessly integrated layers replicate the natural color gradient of enamel and dentin, eliminating visible transition lines and enhancing esthetic outcomes.
Minimal Wall Thickness for Conservative Prep
Allows ultra-thin veneers at 0.4 mm and anterior crowns at 0.8 mm, enabling minimally invasive tooth preparations while maintaining structural integrity.
Fast Sintering Capability
Can be sintered in as little as 54 or 90 minutes for single-tooth restorations and small bridges, accelerating turnaround without compromising esthetics or strength.
Compatible with Advanced Finishing Techniques
Ideal for ultra-micro-layering with CERABIEN™ ZR FC Paste Stain or minimal vestibular cutback for enhanced surface characterization.
Specs
Flexural Strength
557 MPa—optimized for esthetic anterior and minimally loaded posterior restorations.
Layer Structure
Four layers—Enamel, Transition Layer 1, Transition Layer 2, Body Layer—replicating natural shade and translucency gradients.
Indications
Veneers, inlays/onlays, anterior crowns, anterior 2- or 3-unit bridges, single posterior crowns.
Shade Range
VITA Classical A1–D4™ shades plus Enamel shades (ENW, EA1, EA2, EA3).
Recommended Finishing
Monolithic design + ultra-micro-layering (CERABIEN™ ZR FC Paste Stain) or vestibular cutback (0.3 mm) + micro-layering.
Translucency
51% light transmittance, matching lithium disilicate LT for highly natural outcomes.
Minimum Wall Thickness
Veneer: 0.4 mm | Anterior crown: 0.8 mm | Inlay/onlay: 1.0 mm | Posterior crown: 1.0 mm.
Sintering Options
7-hour conventional, 90-minute fast, or 54-minute ultra-fast cycles for single units and small bridges.

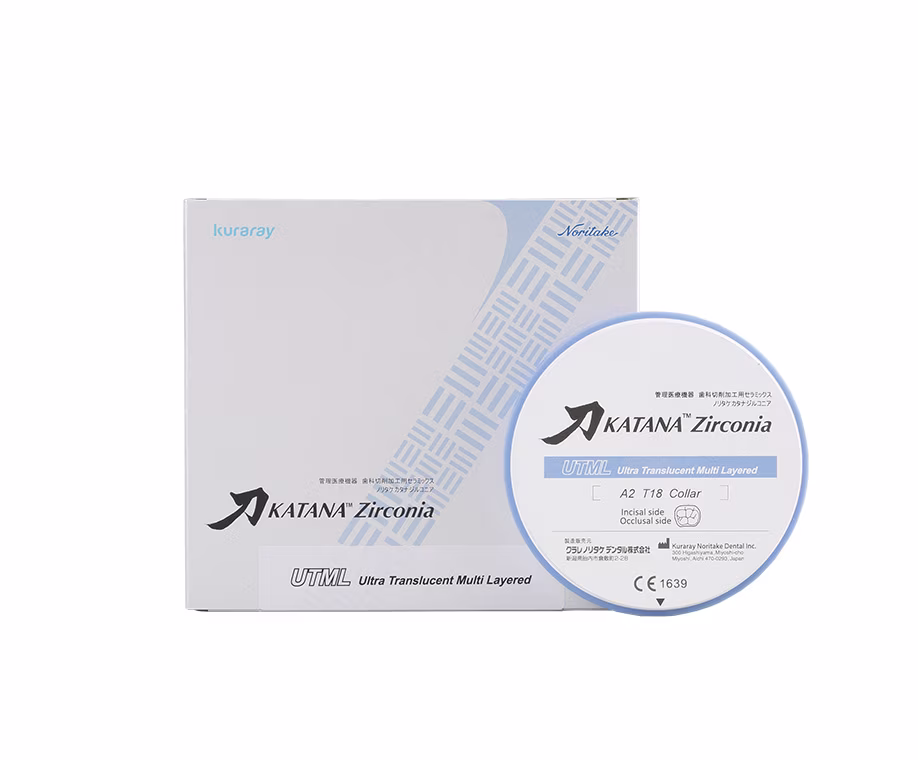

Available Sizes
Disc diameters: 98.5 mm | Thicknesses: 14 mm, 18 mm.
Resources
Instructions:
Related Workflow Products
Low-fusing porcelain system for lifelike micro-layering on zirconia and lithium disilicate restorations.
